HZS35 Concrete Batching Plant
Jinlong HZS concrete batching plant integrates precise weighing, efficient mixing and intelligent control. It delivers stable performance, high productivity and easy operation for construction projects.
● High Efficiency● Stable Performance● Customized Solutions
Technical Parameters
The following data is for reference only. Subject to actual product specifications.
| Plant Section | Theoretical Productivity (m³/h) | 35 |
| Standard Discharge Height (m) | 1.6-3.8 | |
| Working Cycle Time (s) | 72 | |
| Overall Dimension (m) | 12.9*13*17.2 | |
| Total Installed Power (kW) | 75 | |
| Mixer Section | Model | JS750 |
| Batching Machine Section | Model | PLD1200 |
| Air System | Rated Air Displacement (m³/min) | 0.6 |
| Rated Air Pressure (MPa) | 0.6 | |
| Motor Power (kW) | 5.5 | |
| Weighing System | Aggregate Weighing Accuracy | ±2% |
| Cement Weighing Accuracy | ±1% | |
| Water Weighing Accuracy | ±2% | |
| Additive Weighing Accuracy | ±2% |
Configuration Introduction
1. Mixing System
JS series twin-shaft mixer with wear-resistant liners and sealing technology ensures uniform mixing and long service life.
2. Batching System
PLD series batching machine uses high-precision sensors and pneumatic gates for accurate aggregate proportioning.
3. Cement System
Cement weighing and supply design supports accurate measurement and stable production performance.
4. Conveying System
Belt or screw conveying system supports stable feeding, large capacity and easy maintenance.
5. Control System
PLC control and industrial computer interface support automatic operation and data management.
6. Weighing System
Water and additive metering system improves measurement accuracy and concrete consistency.
Auxiliary Equipment
Screw Conveyor
Control System

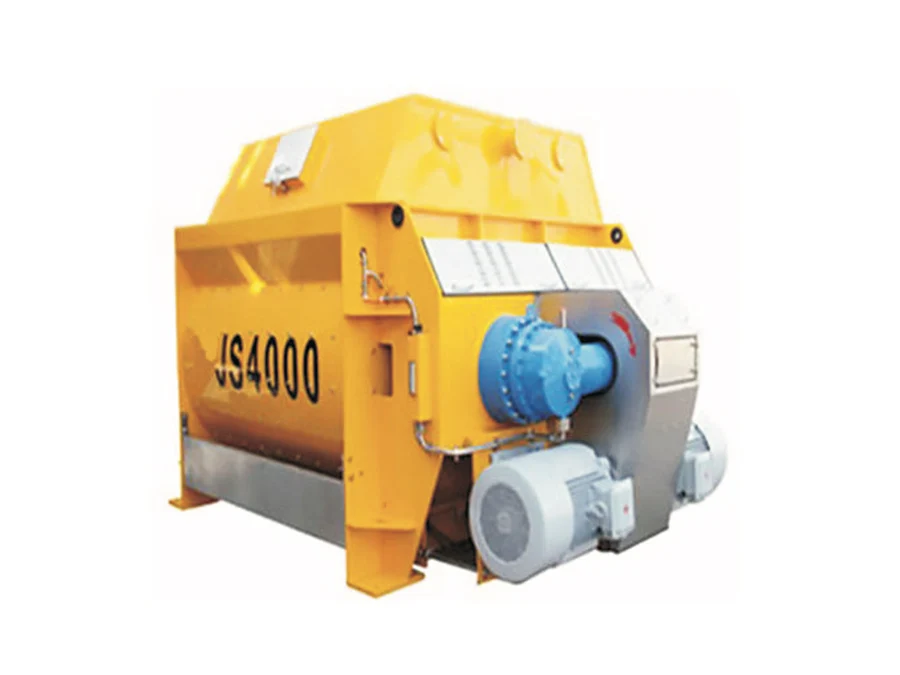

JS4000 Mixer

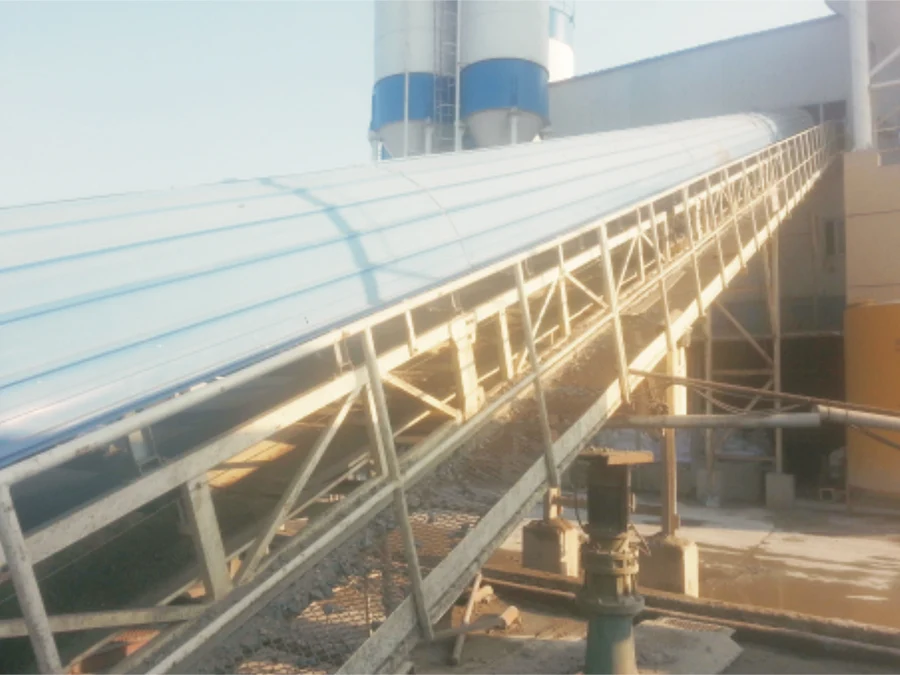

Belt conveyor

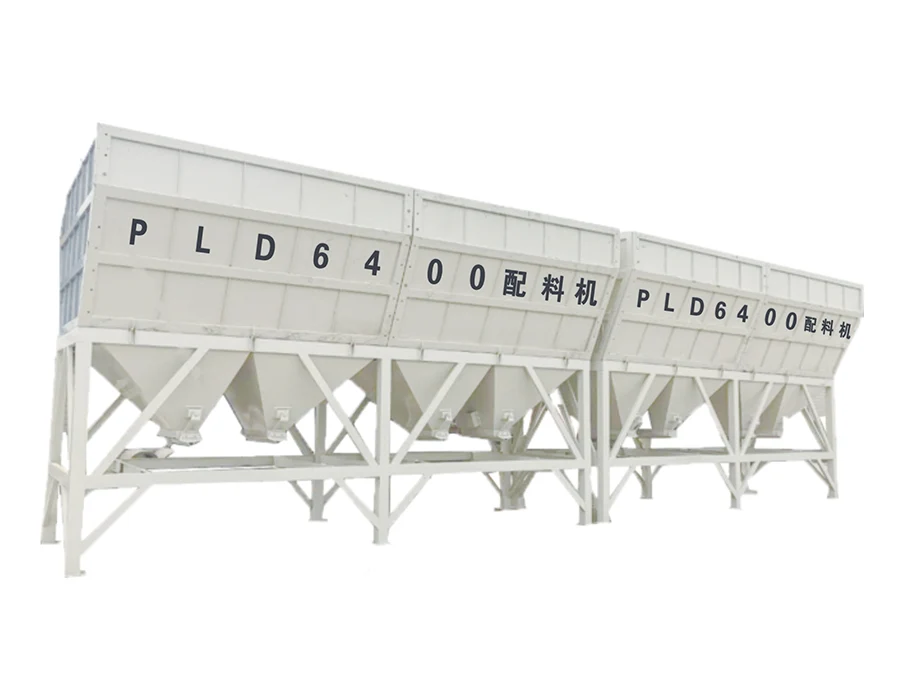

PLD6400 Batching Machine
Why Choose Us
Stable Performance
Reliable components and strict quality control support stable long-term operation.
Modular Design
Modular structure makes transport, installation and configuration more flexible.
Efficient Delivery
Standardized production and logistics support smoother project delivery.
Easy Maintenance
Accessible layout and service-friendly design help reduce maintenance workload.
Technical Support
Professional team provides solution consultation and technical guidance.
Global Project Support
Export documentation and project coordination support for international customers.
Reliable Equipment. Trusted Partner.
Jinlong provides reliable concrete batching plant solutions and professional service support for global construction projects.
Tell us your required capacity, project location and configuration needs.
Our team will help you choose a suitable HZS concrete batching plant solution.
